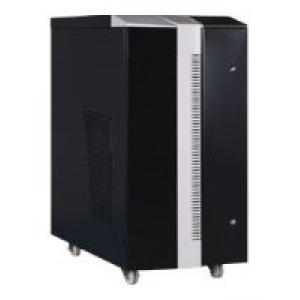

Inform SD3120 specs.
Uninterruptible Power Supplies Specs >> Inform >> Inform SD3120| Specifications | | | Reviews |
Technical Characteristics Inform SD3120
Type:
double conversion
Output power:
20000 VA
Output Waveform:
sinusoid
The number of output power connectors:
1
Type of output power connectors:
IEC 320 C13 (computer)
Efficiency:
91%
Nonlinear distortion factor:
3%
Input/Output Inform SD3120
At the inlet:
3-phase power
At the exit:
1-phase power supply
Input voltage:
140 - 480V
Input Frequency:
45 - 65 Hz
Input power factor:
0.97
Output voltage (battery mode):
± 1%
Output frequency:
50 - 60 Hz
Crest factor:
3:1
Management Inform SD3120
Interfaces:
RS-232
Dry contacts:
Yes
Support for SNMP:
Yes
Functionality Inform SD3120
Information Display:
LCD Screen
Audible alarm:
Yes
Cold start:
Yes
Manual By-pass:
Yes
Battery Inform SD3120
Charging time:
4:00
The possibility of replacing batteries:
Yes
Connection of additional battery:
Yes
Protection Inform SD3120
Overload protection:
Yes
Protection from high-voltage pulses:
Yes
Short-circuit protection:
Yes
Additional Information Inform SD3120
Noise level:
55 dV
Color:
black
Dimensions (WxHxD):
430x970x820 mm
Reviews, Questions about Inform SD3120
| tinashe | January 11, 2018 | |
| what kind of battries and quantity are used in an sd3120, size 20kva | ||
