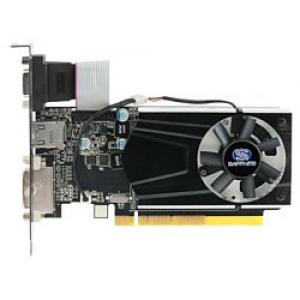

Sapphire Radeon R7 240 780Mhz PCI-E 3.0 1024Mb 1600Mhz 64 bit DVI HDMI HDCP specs.

  Video cards Specs >> Sapphire >> Sapphire Radeon R7 240 780Mhz PCI-E 3.0 1024Mb 1600Mhz 64 bit DVI HDMI HDCP
Specifications | Reviews


General Specs Sapphire Radeon R7 240 780Mhz PCI-E 3.0 1024Mb 1600Mhz 64 bit DVI HDMI HDCP
Product Type:
office / game
Type of connection:
PCI-E
For Mac:
no
Video processor Sapphire Radeon R7 240 780Mhz PCI-E 3.0 1024Mb 1600Mhz 64 bit DVI HDMI HDCP
Manufacturer:
AMD/ATI
Product Line:
Radeon
Product Name:
AMD Radeon R7 240
Code name:
Oland PRO
Number:
1
Frequency:
780 MHz
Host Interface:
3.0
Number of supported monitors:
2
Max. resolution:
4096x2160
Process technology:
28 nm
Number of occupied slots:
1
Low Profile:
no
Number of fans:
1
Support cooling water:
no
TDP:?Thermal Design Power
30 W
Cooling System Design:
custom
Built-in TV-tuner:
no
Specifications Sapphire Radeon R7 240 780Mhz PCI-E 3.0 1024Mb 1600Mhz 64 bit DVI HDMI HDCP
Memory Technology:
GDDR3
Standard Memory:
1 024 Mb
Memory frequency:
1 600 MHz
Memory bus:
64 bit
The frequency of RAMDAC:
400 MHz
SLI/CrossFire:?Scalable Link Interface
no
CrossFire X:
no
3-Way SLI:
no
Quad SLI:
no
TurboCache/HyperMemory:
no
Supports CUDA:?Compute Unified Device Architecture
no
Supports AMD APP (ATI Stream):
yes
Math unit Sapphire Radeon R7 240 780Mhz PCI-E 3.0 1024Mb 1600Mhz 64 bit DVI HDMI HDCP
Unified processors:
320
Shader:
5.0
The number of texture units:
20
The number of ROP units:?Raster Operations Pipeline
8
Max. the degree of anisotropic filtering:
16x
Max. degree of FSAA:
24x
DirectX version:
12
OpenGL version:
4.5
OpenGL version:
1.2
VGA output:?Video Graphics Array
yes
Output Component video:
no
HDMI Output:?High-Definition Multimedia Interface
yes
Number of HDMI Outputs:
1
Mini HDMI Output:
no
Output Micro HDMI:
no
Type HDMI:?High-Definition Multimedia Interface
1.4a
DisplayPort output:
no
Output Mini DisplayPort:
no
HDCP:?High-bandwidth Digital Content Protection
yes
VIVO:?Video In Video Out
no
VESA Stereo (Mini-DIN):
no
TV-out:
no
Number of outputs DVI-I:
1
Additional Information Sapphire Radeon R7 240 780Mhz PCI-E 3.0 1024Mb 1600Mhz 64 bit DVI HDMI HDCP
The need for additional power:
no
Length:
141 mm
Height:
95 mm
