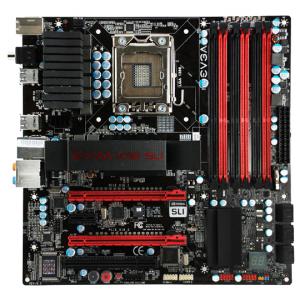

EVGA 121-BL-E756-TR specs
Motherboards Specs >> EVGA >> EVGA 121-BL-E756-TR| Specifications | | | Reviews |
Processor EVGA 121-BL-E756-TR
Socket:
Socket LGA1366
Processors supported:
Intel Core i7/Core i7 Extreme
System bus:
QuickPath Interconnect
Support for multi-core processors:
yes
Chipset EVGA 121-BL-E756-TR
Chipset:
Intel X58
SLI/CrossFire:
Scalable Link Interface
Scalable Link InterfaceSLI
Memory EVGA 121-BL-E756-TR
Memory:
DDR3 DIMM; 1600 MHz
Number of memory slots:
6
Supports dual channel mode:
yes
Supports triple channel mode:
yes
Maximum memory:
12 GB
Disk controllers EVGA 121-BL-E756-TR
IDE:Integrated Drive Electronics
Integrated Drive Electronicsnumber of slots: 1, UltraDMA 133
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachmentnumber of connectors SATA 3Gb/s: 6, RAID: 0, 1, 5, 10, JBOD based on the Intel ICH10R
Expansion slots EVGA 121-BL-E756-TR
Expansion slots:
2xPCI-E x16, 1xPCI-E x1, 1xPCI
PCI Express 2.0 support:
yes
Audio/video EVGA 121-BL-E756-TR
Sound:
7.1CH, HDA
Network EVGA 121-BL-E756-TR
Ethernet:
1000 Mbps
Connection EVGA 121-BL-E756-TR
Interfaces:
12 USB, 3xFireWire (IEEE1394a), S/PDIF output, 2xCOM, Ethernet, PS/2 (keyboard), LPT
Back panel connectors:
8 USB, coaxial output, optical output, Ethernet, PS/2 (keyboard)
Main power connector:
24-pin
Advanced settings EVGA 121-BL-E756-TR
Form factor:
microATX
