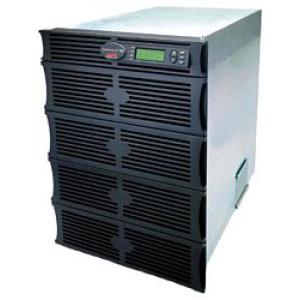

APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT) specs.
Uninterruptible Power Supplies Specs >> APC >> APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)| Specifications | | | Reviews |
Technical Characteristics APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Type:
double Conversion
Rackable:
yes
Output power APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Full:
12000 VA
Active:
8400 W
Working hours APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Full load:
4.4 min
Half load:
15.4 min
Output Waveform:
sinusoid
Input / Output APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Voltage APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Input:
1-phase
Output:
1-phase
The number of output power connectors APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Total:
31
Type:
IEC 320 C13 (computer)
Input voltage APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Minimum:
155 V
Maximum:
276 V
Input frequency APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Minimum:
45 Hz
Maximum:
65 Hz
Output frequency APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Minimum:
47 Hz
Maximum:
53 Hz
Crest factor:
5
The stability of the output voltage (battery mode):
5 %
Functions APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Information Display:
LCD Screen
Audible alarm:
yes
Cold start:
yes
By-pass APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Manual:
yes
Automatic:
yes
Interfaces APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
USB:
Universal Serial Bus
Universal Serial Busno
RS-232:
yes
Ethernet 10/100:
yes
Slot for optional interfaces:
yes
Dry contacts:
no
SNMP Support:
yes
Protection APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Protection from high-voltage pulses:
yes
Noise Filtering:
yes
Fuse type:
automatic
Phone line protection:
no
Protecting the local network:
no
Protect the antenna cable:
no
Supply APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Charging time:
3 h
Battery replacement:
yes
Hot-swappable batteries:
yes
Connecting additional battery:
yes
Additional information APC Symmetra RM 12kVA Scalable to 12kVA N 1 or 16kVA (SYP12K12RMT)
Height (in units):
15 U
Height:
667 mm
Width:
483 mm
Depth:
737 mm
Weight:
205.45 kg
Colour:
black
