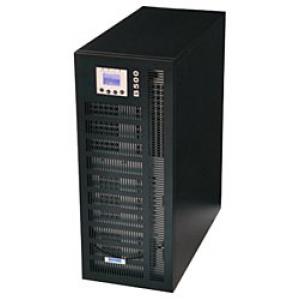

Borri B500 100-C specs.
Uninterruptible Power Supplies Specs >> Borri >> Borri B500 100-C| Specifications | | | Reviews |
Technical Characteristics Borri B500 100-C
Type:
double Conversion
Rackable:
no
Output power Borri B500 100-C
Full:
10000 VA
Active:
9000 W
Nonlinear distortion factor:
5 %
Input / Output Borri B500 100-C
Voltage Borri B500 100-C
Input:
1-phase
Output:
1-phase
The number of output power connectors Borri B500 100-C
Total:
1
UPS:
1
Input voltage Borri B500 100-C
Minimum:
110 V
Maximum:
276 V
Input frequency Borri B500 100-C
Minimum:
45 Hz
Maximum:
66 Hz
Crest factor:
3
Input power factor:
0.9
The stability of the output voltage (battery mode):
1 %
Functions Borri B500 100-C
Information Display:
LCD Screen
Audible alarm:
yes
Cold start:
yes
By-pass Borri B500 100-C
Manual:
yes
Automatic:
yes
Interfaces Borri B500 100-C
USB:
Universal Serial Bus
Universal Serial Busyes
RS-232:
yes
Ethernet 10/100:
no
Slot for optional interfaces:
yes
Dry contacts:
no
SNMP Support:
no
Protection Borri B500 100-C
Overload protection:
yes
Protection from high-voltage pulses:
yes
Noise Filtering:
yes
Short-circuit protection:
yes
Phone line protection:
no
Protecting the local network:
no
Protect the antenna cable:
no
Galvanic isolation:
no
Supply Borri B500 100-C
Charging time:
5 h
Battery replacement:
yes
Hot-swappable batteries:
no
Connecting additional battery:
yes
Additional information Borri B500 100-C
Noise level:
50 dB
Height:
708 mm
Width:
250 mm
Depth:
550 mm
Weight:
92 kg
Colour:
black
Reviews, Questions about Borri B500 100-C
| OLATUNDE O | June 25, 2018 | |
| Our B500-100-C ups is always on bye pass mode and refuse to switch to Normal mode as Inverter is not switching but displayed Alarm 34, what could be the problem | ||
| OLATUNDE O | June 25, 2018 | |
| What does Alarm 34 indicate | ||
