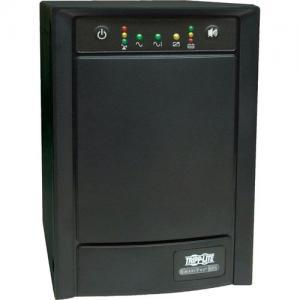

Tripp Lite UPS Smart 1050VA (SMART1050SLT) specs.
Uninterruptible Power Supplies Specs >> Tripp >> Tripp Lite UPS Smart 1050VA (SMART1050SLT)| Specifications | | | Reviews |
Technical Information Tripp Lite UPS Smart 1050VA (SMART1050SLT)
Plug/Connector Type:
NEMA 5-15P
Receptacles:
8 x NEMA 5-15R
Cord Length:
6 ft
Power Description Tripp Lite UPS Smart 1050VA (SMART1050SLT)
Load Capacity:
1.05 kVA/650 W
Input Voltage:
100 V AC 110 V AC 120 V AC
Output Voltage:
100 V AC 110 V AC 120 V AC
Waveform Type:
Sine Wave
Management Tripp Lite UPS Smart 1050VA (SMART1050SLT)
Network Management:
SNMP Manageable
Alarm:
On Battery Overload
Controls/Indicators Tripp Lite UPS Smart 1050VA (SMART1050SLT)
Status Indicators:
Includes 14 front panel LEDs to indicate line / battery power status, over / under voltage correction, battery charge level (4 LEDs), load percentage (4 LEDs), overload and replace battery. Also includes 1 rear panel site wiring fault indicator.
Interfaces/Ports Tripp Lite UPS Smart 1050VA (SMART1050SLT)
USB:
Universal Serial Bus
Universal Serial BusYes
Total Number of Expansion Slots:
1
Battery Information Tripp Lite UPS Smart 1050VA (SMART1050SLT)
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
7 Minute
Backup/Run Time (Half Load):
19 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
4 Hour
Hot Swappable:
Yes
Environmental Conditions Tripp Lite UPS Smart 1050VA (SMART1050SLT)
Maximum Operating Temperature:
104°F (40°C)
Design Tripp Lite UPS Smart 1050VA (SMART1050SLT)
Height:
10.20" (259.08 mm)
Width:
6.80" (172.72 mm)
Depth:
13.20" (335.28 mm)
Form Factor:
Tower
Weight:
19.50 kg
Miscellaneous Tripp Lite UPS Smart 1050VA (SMART1050SLT)
Additional Information:
SMART1050SLT line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
1050VA / 650 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices
Large internal batteries offer runtimes of 19 minutes at half load (525VA / 325 watts) and 7 minutes at full load (1050VA / 650 watts)
Automatic Voltage Regulation (AVR) circuits maintain user-selectable 100, 110, 120 or 127V nominal output over an input voltage range of 91-145V
Includes 8 fully-protected NEMA 5-15R output receptacles arranged in a single load bank that can be powered off and back on again via software interface
PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
Offers simultaneous monitoring of up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise managment software is also available for select opportunities
Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment
Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
15 LEDs offer continuous detailed status information of UPS operating parameters and site power quality
Hot-swappable batteries allow on-site battery replacement without powering off connected equipment
UL (USA), cUL (Canada), NOM (Mexico), FCC Class B (Emissions) Listed
2 year warranty with up to $250,000 connected equipment insurance
1050VA / 650 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices
Large internal batteries offer runtimes of 19 minutes at half load (525VA / 325 watts) and 7 minutes at full load (1050VA / 650 watts)
Automatic Voltage Regulation (AVR) circuits maintain user-selectable 100, 110, 120 or 127V nominal output over an input voltage range of 91-145V
Includes 8 fully-protected NEMA 5-15R output receptacles arranged in a single load bank that can be powered off and back on again via software interface
PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
Offers simultaneous monitoring of up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise managment software is also available for select opportunities
Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment
Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
15 LEDs offer continuous detailed status information of UPS operating parameters and site power quality
Hot-swappable batteries allow on-site battery replacement without powering off connected equipment
UL (USA), cUL (Canada), NOM (Mexico), FCC Class B (Emissions) Listed
2 year warranty with up to $250,000 connected equipment insurance
Certifications & Standards:
UL1778 (USA), cUL (Canada), FCC Class B (emissions), IEC 1000-4-2 Level 3 (Electrostatic Discharge), IEC 1000-4-4 Level 2 (Fast Transient / Burst), IEC 1000-4-5 Level 3 (Lightning Surge), Conforms to IEEE 587 / ANSI C62.41 specifications
