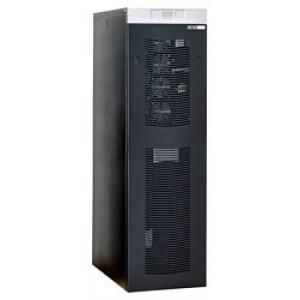

Powerware 9355-10-NL-20-64x7Ah specs.
Uninterruptible Power Supplies Specs >> Powerware >> Powerware 9355-10-NL-20-64x7Ah| Specifications | | | Reviews |
Technical Characteristics Powerware 9355-10-NL-20-64x7Ah
Type:
double Conversion
Rackable:
no
Output power Powerware 9355-10-NL-20-64x7Ah
Full:
10000 VA
Active:
9000 W
Working hours Powerware 9355-10-NL-20-64x7Ah
Full load:
20 min
Half load:
44 min
Output Waveform:
sinusoid
Efficiency:
92 %
Nonlinear distortion factor:
5 %
Input / Output Powerware 9355-10-NL-20-64x7Ah
Voltage Powerware 9355-10-NL-20-64x7Ah
Input:
3-phase
Output:
3-phase
The number of output power connectors Powerware 9355-10-NL-20-64x7Ah
Total:
1
Type:
IEC 320 C13 (computer)
Input voltage Powerware 9355-10-NL-20-64x7Ah
Minimum:
304 V
Maximum:
456 V
Input frequency Powerware 9355-10-NL-20-64x7Ah
Minimum:
45 Hz
Maximum:
65 Hz
Input power factor:
0.99
The stability of the output voltage (battery mode):
3 %
Functions Powerware 9355-10-NL-20-64x7Ah
Information Display:
LCD Screen
Audible alarm:
yes
Cold start:
yes
Interfaces Powerware 9355-10-NL-20-64x7Ah
USB:
Universal Serial Bus
Universal Serial Busno
RS-232:
yes
Ethernet 10/100:
no
Slot for optional interfaces:
yes
Dry contacts:
yes
SNMP Support:
yes
Protection Powerware 9355-10-NL-20-64x7Ah
Overload protection:
yes
Protection from high-voltage pulses:
yes
Noise Filtering:
yes
Short-circuit protection:
yes
Phone line protection:
no
Protecting the local network:
no
Protect the antenna cable:
no
Supply Powerware 9355-10-NL-20-64x7Ah
Battery replacement:
yes
Connecting additional battery:
yes
Additional information Powerware 9355-10-NL-20-64x7Ah
Noise level:
50 dB
Height:
1214 mm
Width:
305 mm
Depth:
702 mm
Weight:
280 kg
