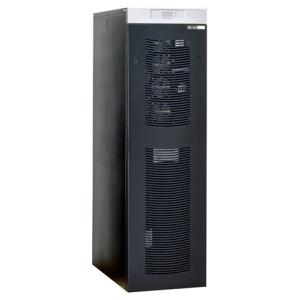

Powerware 9355-10-N-0-64x0Ah-MBS specs.
Uninterruptible Power Supplies Specs >> Powerware >> Powerware 9355-10-N-0-64x0Ah-MBS| Specifications | | | Reviews |
Technical characteristics Powerware 9355-10-N-0-64x0Ah-MBS
Type:
double-conversion
Output power:
10, 000va / 9000 W
Operating time at full load:
10 min
Output waveform:
sine wave
The number of output power connectors:
1
Type of output power connectors:
IEC 320 C13 (computer)
Efficiency:
92%
Non-linear distortion factor:
5%
Input / Output Powerware 9355-10-N-0-64x0Ah-MBS
Inlet:
3-phase voltage
Output:
3-phase voltage
Input voltage:
304 - 456V
Input frequency:
45 - 65 Hz
Input power factor:
0.99
Stable output voltage regulation (battery mode):
to + / -3 %
Management Powerware 9355-10-N-0-64x0Ah-MBS
Interfaces:
RS-232
Slot for optional interfaces:
yes
Dry contacts:
yes
SNMP support:
yes
Functionality Powerware 9355-10-N-0-64x0Ah-MBS
Display information:
LCD screen
Audible alarm:
yes
Cold start:
yes
Automatic By-pass:
yes
Battery Powerware 9355-10-N-0-64x0Ah-MBS
The possibility of replacing batteries:
yes
Connection of additional batteries:
yes
Protection Powerware 9355-10-N-0-64x0Ah-MBS
Overload protection:
yes
Protection from high-voltage pulses:
yes
Noise filtering:
yes
Short circuit protection:
yes
Additional information Powerware 9355-10-N-0-64x0Ah-MBS
Noise level:
53 dB
Dimensions (WxHxD):
305x1214x702 mm
Weight:
60 kg
Features:
In this version there is one empty battery pack, without additional equipment? mechanical bypass
