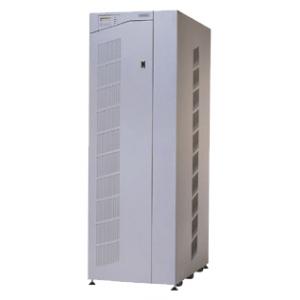

Powerware 9305-20I-N-0 specs.
Uninterruptible Power Supplies Specs >> Powerware >> Powerware 9305-20I-N-0| Specifications | | | Reviews |
Technical Characteristics Powerware 9305-20I-N-0
Type:
double conversion
Output power:
20000 VA/14000 Tues
Output Waveform:
sinusoid
The number of output power connectors:
1 (one with a battery - 1)
Type of output power connectors:
IEC 320 C13 (computer)
Efficiency:
94%
Nonlinear distortion factor:
5%
Input/Output Powerware 9305-20I-N-0
At the inlet:
3-phase power
At the exit:
3-phase power
Input voltage:
170 - 484V
Input Frequency:
45 - 65 Hz
Input power factor:
0.96
Output voltage (battery mode):
± 5%
Management Powerware 9305-20I-N-0
Interfaces:
RS-232
Slot for optional interfaces:
Yes
Dry contacts:
Yes
Functionality Powerware 9305-20I-N-0
Information Display:
LCD Screen
Audible alarm:
Yes
Cold start:
Yes
Manual By-pass:
Yes
Automatic By-pass:
Yes
Battery Powerware 9305-20I-N-0
Connection of additional battery:
Yes
Protection Powerware 9305-20I-N-0
Protection from high-voltage pulses:
Yes
Noise filtering:
Yes
Short-circuit protection:
Yes
Additional Information Powerware 9305-20I-N-0
Noise level:
55 dV
Dimensions (WxHxD):
520x1530x788 mm
Weight:
210 kg
Features:
without battery system, support for SNMP - optsinalno
