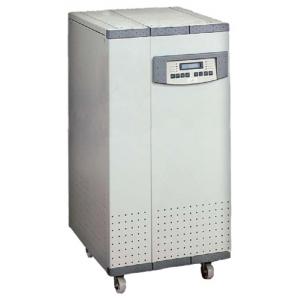

NeuHaus Integra 8 KVA (1F/1F) specs.
Uninterruptible Power Supplies Specs >> NeuHaus >> NeuHaus Integra 8 KVA (1F/1F)| Specifications | | | Reviews |
Technical characteristics NeuHaus Integra 8 KVA (1F/1F)
Type:
double-conversion
Output power:
8000 VA / 6400 W
Operating time at full load:
12 min
Half load runtime:
26 min
Output waveform:
sine wave
Transfer time battery:
4 MS
The number of output power connectors:
1 (of them battery-powered - 1)
Type of output power connectors:
IEC 320 C13 (computer)
Non-linear distortion factor:
3%
Input / Output NeuHaus Integra 8 KVA (1F/1F)
Inlet:
1-phase voltage
Output:
1-phase voltage
Input voltage:
176 - 264
Input frequency:
47 - 53 Hz
Stable output voltage regulation (battery mode):
+ or-2 %
Output frequency:
49 - 51 Hz
Crest factor:
3:1
Management NeuHaus Integra 8 KVA (1F/1F)
Interfaces:
RS-232
Slot for optional interfaces:
yes
Dry contacts:
yes
Functionality NeuHaus Integra 8 KVA (1F/1F)
Display information:
LCD screen
Audible alarm:
yes
Cold start:
yes
The manual By-pass:
yes
Automatic By-pass:
yes
Battery NeuHaus Integra 8 KVA (1F/1F)
Charging time:
8 hour
The possibility of replacing batteries:
yes
Connection of additional batteries:
yes
Protection NeuHaus Integra 8 KVA (1F/1F)
Galvanic isolation:
yes
Overload protection:
yes
Protection from high-voltage pulses:
yes
Noise filtering:
yes
Short circuit protection:
yes
Fuse type:
automatic
Additional information NeuHaus Integra 8 KVA (1F/1F)
Noise level:
50 dB
Color:
white
Dimensions (WxHxD):
390x820x790 mm
Weight:
220 kg
