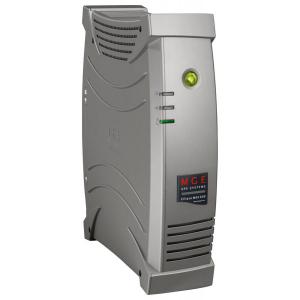

MGE Ellipse MAX 600 specs.
Uninterruptible Power Supplies Specs >> MGE >> MGE Ellipse MAX 600| Specifications | | | Reviews |
Technical Characteristics MGE Ellipse MAX 600
Type:
interactive
Output power:
600 VA/360 W
Time at full load:
7 min
Time at half load:
12 min
You switch to battery:
10 ms
Max.:
525 Joules
The number of output power connectors:
4 (including battery-powered - 3)
Type of output power connectors:
IEC 320 C13 (computer)
Input/Output MGE Ellipse MAX 600
At the inlet:
1-phase power supply
At the exit:
1-phase power supply
Input voltage:
150 - 285V
Input Frequency:
46 - 70 Hz
Output voltage (battery mode):
± 7%
Output frequency:
49 - 51 Hz
Functionality MGE Ellipse MAX 600
Information Display:
LEDs
Audible alarm:
Yes
Cold start:
Yes
Battery MGE Ellipse MAX 600
The possibility of replacing batteries:
Yes
Connection of additional battery:
Yes
Protection MGE Ellipse MAX 600
Overload protection:
Yes
Protection from high-voltage pulses:
Yes
Short-circuit protection:
Yes
Fuse type:
automatic
Telephone protection:
Yes
LAN security:
Yes
Additional Information MGE Ellipse MAX 600
Color:
gray
Dimensions (WxHxD):
314x82x301 mm
Height (in units):
2 U
Weight:
5.75 kg
Features:
Vertical and horizontal installation
