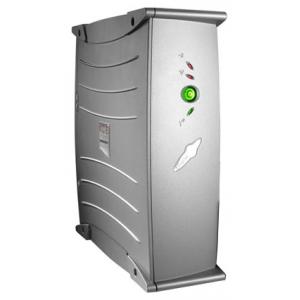

MGE Ellipse ASR 450 specs.
Uninterruptible Power Supplies Specs >> MGE >> MGE Ellipse ASR 450| Specifications | | | Reviews |
Technical Characteristics MGE Ellipse ASR 450
Type:
reserve
Output power:
450 VA/225 W
Time at full load:
6 min
Time at half load:
11 min
Output Waveform:
sine wave
You switch to battery:
5 ms
Max.:
525 Joules
The number of output power connectors:
4 (including battery-powered - 3)
Type of output power connectors:
IEC 320 C13 (computer)
Input/Output MGE Ellipse ASR 450
At the inlet:
1-phase power supply
At the exit:
1-phase power supply
Input voltage:
184 - 264V
Output voltage (battery mode):
± 7%
Output frequency:
49 - 51 Hz
Functionality MGE Ellipse ASR 450
Information Display:
LEDs
Audible alarm:
Yes
Cold start:
Yes
Battery MGE Ellipse ASR 450
Charging time:
4:00
The possibility of replacing batteries:
Yes
Hot-swappable batteries:
Yes
Protection MGE Ellipse ASR 450
Overload protection:
Yes
Protection from high-voltage pulses:
Yes
Short-circuit protection:
Yes
Fuse type:
automatic
Telephone protection:
Yes
LAN security:
Yes
Additional Information MGE Ellipse ASR 450
Color:
gray
Dimensions (WxHxD):
81x424x245 mm
Height (in units):
3 U
Weight:
4.2 kg
Features:
Vertical and horizontal installation
