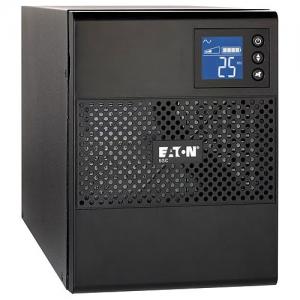

Eaton 5SC UPS (5SC1000) specs.
Uninterruptible Power Supplies Specs >> Eaton >> Eaton 5SC UPS (5SC1000)| Specifications | | | Reviews |
Technical Information Eaton 5SC UPS (5SC1000)
Plug/Connector Type:
NEMA 5-15P
Receptacles:
8 x NEMA 5-15R
Cord Length:
6 ft
Power Description Eaton 5SC UPS (5SC1000)
Load Capacity:
1 kVA/700 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Interfaces/Ports Eaton 5SC UPS (5SC1000)
Serial Port:
Yes
Network (RJ-45):
Yes
USB:
Universal Serial Bus
Universal Serial BusYes
Battery Information Eaton 5SC UPS (5SC1000)
Battery Characteristics:
Maintenance-free, Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
5 Minute
Backup/Run Time (Half Load):
13 Minute
Hot Swappable:
No
Environmental Conditions Eaton 5SC UPS (5SC1000)
Maximum Operating Temperature:
104°F (40°C)
Sound Emission:
55 dB
Design Eaton 5SC UPS (5SC1000)
Color:
Black
Height:
8.23" (209 mm)
Width:
5.91" (150 mm)
Depth:
13.39" (340 mm)
Form Factor:
Tower
Weight:
11.61 kg
Miscellaneous Eaton 5SC UPS (5SC1000)
Certifications & Standards:
CE
cULus
NOM
IEC 62040-2:2006 Cat C2
CISPR22 Class A
FCC part 15 Class A
cULus
NOM
IEC 62040-2:2006 Cat C2
CISPR22 Class A
FCC part 15 Class A
Software Included:
Intelligent Power Manager Software
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
