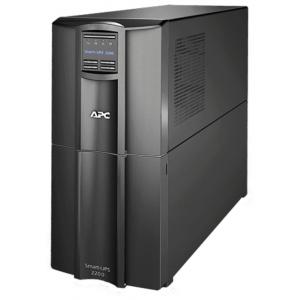

Technical characteristics APC by Schneider Electric Smart-UPS 2200VA LCD 230V China
Type:
interactive
Output power:
2200VA / 1980 W
Operating time at full load:
9 min
Half load runtime:
34 min
Output waveform:
sine wave
Max. the pulse energy:
365 J.
The number of output power connectors:
9 (of them battery-powered - 9)
Type of output power connectors:
IEC 320 C13 (computer)
Non-linear distortion factor:
5%
Input / Output APC by Schneider Electric Smart-UPS 2200VA LCD 230V China
Inlet:
1-phase voltage
Output:
1-phase voltage
Input voltage:
160 - 280V
Input frequency:
47 - 63 Hz
Stable output voltage regulation (battery mode):
± 5 %
Output frequency:
47 - 63 Hz
Management APC by Schneider Electric Smart-UPS 2200VA LCD 230V China
Interfaces:
USB, RS-232
Slot for optional interfaces:
yes
Functionality APC by Schneider Electric Smart-UPS 2200VA LCD 230V China
Display information:
led indicators
Audible alarm:
yes
Cold start:
yes
Battery APC by Schneider Electric Smart-UPS 2200VA LCD 230V China
Charging time:
3 hour
The possibility of replacing batteries:
yes
Protection APC by Schneider Electric Smart-UPS 2200VA LCD 230V China
Overload protection:
yes
Protection from high-voltage pulses:
yes
Noise filtering:
yes
Short circuit protection:
yes
Fuse type:
automatic
Additional information APC by Schneider Electric Smart-UPS 2200VA LCD 230V China
Noise level:
45 dB
Color:
black
Dimensions (WxHxD):
197x435x544 mm
Weight:
48.8 kg
