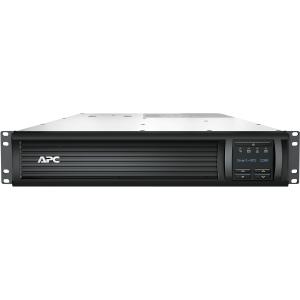

APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658) specs.
Uninterruptible Power Supplies Specs >> APC >> APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658)| Specifications | | | Reviews |
Technical Information APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658)
AVR:
Yes
Plug/Connector Type:
NEMA 5-20P
Receptacles:
6 x NEMA 5-15R 2 x NEMA 5-20R
Number of Battery & Surge Outlets:
8
Application/Usage:
Server Electronic Device Storage Device Network Business
Power Description APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658)
Load Capacity:
2.20 kVA/1.98 kW
Input Voltage:
120 V AC
Input Voltage Range:
82 V AC - 144 V AC
Output Voltage:
120 V AC
Input Frequency:
50 Hz to 60 Hz
Output Frequency:
57 Hz to 63 Hz
Waveform Type:
Pure Sine Wave
Surge Energy Rating:
530 J
Management APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658)
Alarm:
On Battery Low Battery Fault
Controls/Indicators APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658)
Status Indicators:
LED Indicators:
On LineOn Battery
Replace Battery
Overload
Intuitive LCD Display:
Load capacityBattery charge level
Estimated runtime
Interfaces/Ports APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658)
USB (HID Compliant) Port:
Yes
Battery Information APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658)
Number of Batteries:
1
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
5.10 Minute
Backup/Run Time (Half Load):
15.20 Minute
Typical Battery Recharge Time:
3 Hour
Replaceable Battery:
Yes
Design APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658)
Height:
3.40" (86.36 mm)
Width:
18.90" (480.06 mm)
Depth:
26.90" (683.26 mm)
Rack Height:
2U
Form Factor:
Rack-mountable
Weight:
42.22 kg
Miscellaneous APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS (SMT2200R2X658)
Environmentally Friendly:
Yes
Environmental Certification:
RoHS REACH
