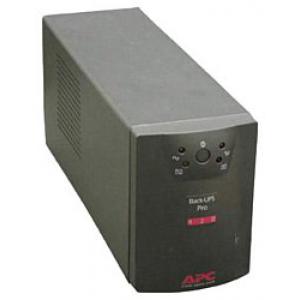

APC by Schneider Electric Back-UPS CS 420 Pro specs.
Uninterruptible Power Supplies Specs >> APC >> APC by Schneider Electric Back-UPS CS 420 Pro| Specifications | | | Reviews |
Technical Characteristics APC by Schneider Electric Back-UPS CS 420 Pro
Type:
backup
Rackable:
no
Output power APC by Schneider Electric Back-UPS CS 420 Pro
Full:
420 VA
Active:
260 W
Working hours APC by Schneider Electric Back-UPS CS 420 Pro
Full load:
5.5 min
Half load:
13.5 min
Output Waveform:
sine wave approximation
Switching time on battery:
4 ms
Max. absorbed by the pulse energy:
320 J
Input / Output APC by Schneider Electric Back-UPS CS 420 Pro
Voltage APC by Schneider Electric Back-UPS CS 420 Pro
Input:
1-phase
Output:
1-phase
The number of output power connectors APC by Schneider Electric Back-UPS CS 420 Pro
Total:
4
UPS:
3
Type:
IEC 320 C13 (computer)
Input voltage APC by Schneider Electric Back-UPS CS 420 Pro
Minimum:
160 V
Maximum:
286 V
Input frequency APC by Schneider Electric Back-UPS CS 420 Pro
Minimum:
45 Hz
Maximum:
55 Hz
Functions APC by Schneider Electric Back-UPS CS 420 Pro
Information Display:
LEDs
Audible alarm:
yes
Cold start:
yes
By-pass APC by Schneider Electric Back-UPS CS 420 Pro
Manual:
no
Automatic:
no
Interfaces APC by Schneider Electric Back-UPS CS 420 Pro
USB:
Universal Serial Bus
Universal Serial Busno
RS-232:
yes
Ethernet 10/100:
no
Slot for optional interfaces:
no
Dry contacts:
no
SNMP Support:
no
Protection APC by Schneider Electric Back-UPS CS 420 Pro
Overload protection:
yes
Noise Filtering:
yes
Short-circuit protection:
yes
Fuse type:
automatic
Phone line protection:
yes
Protecting the local network:
no
Protect the antenna cable:
no
Supply APC by Schneider Electric Back-UPS CS 420 Pro
Charging time:
7 h
Battery replacement:
yes
Hot-swappable batteries:
yes
Connecting additional battery:
no
Additional information APC by Schneider Electric Back-UPS CS 420 Pro
Noise level:
45 dB
Height:
168 mm
Width:
119 mm
Depth:
368 mm
Weight:
8.55 kg
