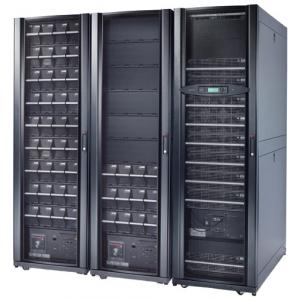

APC Symmetra PX 128kW Scalable to 160kW, 400V specs.
Uninterruptible Power Supplies Specs >> APC >> APC Symmetra PX 128kW Scalable to 160kW, 400V| Specifications | | | Reviews |
Technical Characteristics APC Symmetra PX 128kW Scalable to 160kW, 400V
Type:
double conversion
Output power:
128 000 VA/128 000 Tues
Time at full load:
6.1 min
Time at half load:
19.7 min
Output Waveform:
sinusoid
The number of output power connectors:
1 (one with a battery - 1)
Type of output power connectors:
IEC 320 C13 (computer)
Rackable:
Yes
Efficiency:
94%
Nonlinear distortion factor:
5%
Input/Output APC Symmetra PX 128kW Scalable to 160kW, 400V
At the inlet:
3-phase power
At the exit:
1-faznoe/3-faznoe voltage
Input voltage:
340 - 477 V
Input Frequency:
40 - 70 Hz
Output voltage (battery mode):
± 3%
Output frequency:
47 - 53 Hz
Management APC Symmetra PX 128kW Scalable to 160kW, 400V
Interfaces:
Ethernet 10/100
Slot for optional interfaces:
Yes
Dry contacts:
Yes
Functionality APC Symmetra PX 128kW Scalable to 160kW, 400V
Information Display:
LCD Screen
Audible alarm:
Yes
Automatic By-pass:
Yes
Battery APC Symmetra PX 128kW Scalable to 160kW, 400V
Charging time:
3.5 hour
The possibility of replacing batteries:
Yes
Hot-swappable batteries:
Yes
Connection of additional battery:
Yes
Protection APC Symmetra PX 128kW Scalable to 160kW, 400V
Overload protection:
Yes
Protection from high-voltage pulses:
Yes
Noise filtering:
Yes
Fuse type:
automatic
Additional Information APC Symmetra PX 128kW Scalable to 160kW, 400V
Noise level:
63 dV
Dimensions (WxHxD):
1800x1991x1070 mm
Height (in units):
42 U
Weight:
2452 kg
Features:
Configurable maximum output power 160000Vt/160000VA, 1 or 3-phase output voltage, support SNMP - optional and there is no internal battery - uses external battery system
