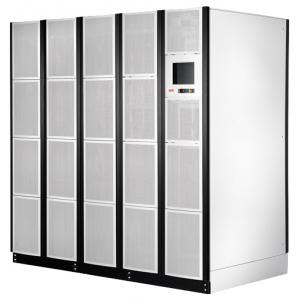

APC Symmetra MW 400kW Frame, 400V specs.
Uninterruptible Power Supplies Specs >> APC >> APC Symmetra MW 400kW Frame, 400V| Specifications | | | Reviews |
Technical Characteristics APC Symmetra MW 400kW Frame, 400V
Type:
double conversion
Output power:
400 000 VA/400 000 Tues
Output Waveform:
sinusoid
The number of output power connectors:
4 (including battery-powered - 4)
Type of output power connectors:
IEC 320 C13 (computer)
Efficiency:
97%
Input/Output APC Symmetra MW 400kW Frame, 400V
At the inlet:
3-phase power
At the exit:
3-phase power
Input voltage:
323 - 477 V
Input Frequency:
46 - 54 Hz
Output voltage (battery mode):
± 5%
Output frequency:
46 - 54 Hz
Management APC Symmetra MW 400kW Frame, 400V
Interfaces:
Ethernet 10/100
Functionality APC Symmetra MW 400kW Frame, 400V
Information Display:
LCD Screen
Audible alarm:
Yes
Manual By-pass:
Yes
Automatic By-pass:
Yes
Battery APC Symmetra MW 400kW Frame, 400V
Connection of additional battery:
Yes
Additional Information APC Symmetra MW 400kW Frame, 400V
Noise level:
74 dV
Dimensions (WxHxD):
2114x2032x1067 mm
Weight:
2122.27 kg
Features:
No internal battery - uses external battery system
