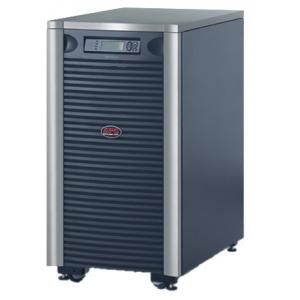

APC Symmetra LX 16kVA N 1 Tower Frame specs.
Uninterruptible Power Supplies Specs >> APC >> APC Symmetra LX 16kVA N 1 Tower Frame| Specifications | | | Reviews |
Technical Characteristics APC Symmetra LX 16kVA N 1 Tower Frame
Type:
double conversion
Output power:
16,000 VA/11200 Tues
Time at full load:
7.5 min
Time at half load:
20.3 min
Output Waveform:
sinusoid
The number of output power connectors:
19 (including battery-powered - 19)
Type of output power connectors:
IEC 320 C13 (computer)
Efficiency:
90%
Nonlinear distortion factor:
5%
Input/Output APC Symmetra LX 16kVA N 1 Tower Frame
At the inlet:
3-phase power
At the exit:
1-phase power supply
Input voltage:
290 - 480V
Input Frequency:
45 - 65 Hz
Output frequency:
47 - 53 Hz
Crest factor:
5:
1
Management APC Symmetra LX 16kVA N 1 Tower Frame
Interfaces:
RS-232
Slot for optional interfaces:
Yes
Dry contacts:
Yes
Functionality APC Symmetra LX 16kVA N 1 Tower Frame
Information Display:
LCD Screen
Audible alarm:
Yes
Cold start:
Yes
Manual By-pass:
Yes
Automatic By-pass:
Yes
Battery APC Symmetra LX 16kVA N 1 Tower Frame
Charging time:
3:00
The possibility of replacing batteries:
Yes
Hot-swappable batteries:
Yes
Connection of additional battery:
Yes
Protection APC Symmetra LX 16kVA N 1 Tower Frame
Galvanic isolation:
Yes
Overload protection:
Yes
Protection from high-voltage pulses:
Yes
Noise filtering:
Yes
Short-circuit protection:
Yes
Fuse type:
automatic
Additional Information APC Symmetra LX 16kVA N 1 Tower Frame
Noise level:
62 dV
Color:
black
Dimensions (WxHxD):
483x937x726 mm
Weight:
307.73 kg
Features:
connectors for remote release button
