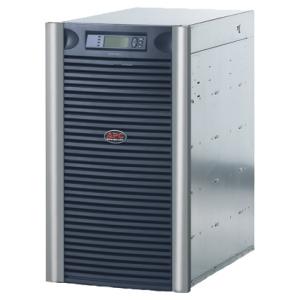

APC Symmetra LX 12kVA Scalable to 16kVA N 1 Rack-mount specs.
Uninterruptible Power Supplies Specs >> APC >> APC Symmetra LX 12kVA Scalable to 16kVA N 1 Rack-mount| Specifications | | | Reviews |
Technical Characteristics APC Symmetra LX 12kVA Scalable to 16kVA N 1 Rack-mount
Type:
double conversion
Output power:
12,000 VA/8400 Tues
Time at full load:
7.5 min
Time at half load:
20.2 min
Output Waveform:
sinusoid
The number of output power connectors:
19
Type of output power connectors:
IEC 320 C13 (computer)
Rackable:
Yes
Efficiency:
90%
Input/Output APC Symmetra LX 12kVA Scalable to 16kVA N 1 Rack-mount
At the exit:
1-phase power supply
Input voltage:
155 - 480V
Input Frequency:
45 - 65 Hz
Output voltage (battery mode):
± 5%
Output frequency:
47 - 63 Hz
Crest factor:
5:
1
Management APC Symmetra LX 12kVA Scalable to 16kVA N 1 Rack-mount
Interfaces:
RS-232
Slot for optional interfaces:
Yes
Functionality APC Symmetra LX 12kVA Scalable to 16kVA N 1 Rack-mount
Information Display:
LCD Screen
Audible alarm:
Yes
Cold start:
Yes
Manual By-pass:
Yes
Automatic By-pass:
Yes
Battery APC Symmetra LX 12kVA Scalable to 16kVA N 1 Rack-mount
Charging time:
3:00
The possibility of replacing batteries:
Yes
Hot-swappable batteries:
Yes
Connection of additional battery:
Yes
Protection APC Symmetra LX 12kVA Scalable to 16kVA N 1 Rack-mount
Overload protection:
Yes
Protection from high-voltage pulses:
Yes
Noise filtering:
Yes
Short-circuit protection:
Yes
Fuse type:
automatic
Additional Information APC Symmetra LX 12kVA Scalable to 16kVA N 1 Rack-mount
Noise level:
62 dV
Dimensions (WxHxD):
472x838x688 mm
Height (in units):
19 U
Weight:
242.73 kg
Features:
Max Configurable Power 11200Vt/16000 VA, Input 1 or 3 phase, support SNMP - optional
