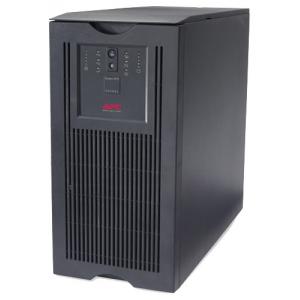

APC Smart-UPS XL 3000VA 230V Tower/Rackmount (5U) specs.
Uninterruptible Power Supplies Specs >> APC >> APC Smart-UPS XL 3000VA 230V Tower/Rackmount (5U)| Specifications | | | Reviews |
Technical Characteristics APC Smart-UPS XL 3000VA 230V Tower/Rackmount (5U)
Type:
interactive
Output power:
3000 VA/2700 W
Time at full load:
5.5 min
Time at half load:
13.6 min
Output Waveform:
sinusoid
Max.:
480 J
The number of output power connectors:
9 (including battery-powered - 9)
Type of output power connectors:
IEC 320 C13 (computer)
Rackable:
Yes
Efficiency:
95%
Input/Output APC Smart-UPS XL 3000VA 230V Tower/Rackmount (5U)
At the inlet:
1-phase power supply
At the exit:
1-phase power supply
Input voltage:
151 - 302 V
Input Frequency:
45 - 55 Hz
Input power factor:
0.9
Output voltage (battery mode):
± 5%
Output frequency:
47 - 53 Hz
Crest factor:
5:
1
Management APC Smart-UPS XL 3000VA 230V Tower/Rackmount (5U)
Interfaces:
USB, RS-232
Slot for optional interfaces:
Yes
Functionality APC Smart-UPS XL 3000VA 230V Tower/Rackmount (5U)
Information Display:
LEDs
Audible alarm:
Yes
Cold start:
Yes
Battery APC Smart-UPS XL 3000VA 230V Tower/Rackmount (5U)
Charging time:
3:00
The possibility of replacing batteries:
Yes
Hot-swappable batteries:
Yes
Connection of additional battery:
Yes
Protection APC Smart-UPS XL 3000VA 230V Tower/Rackmount (5U)
Overload protection:
Yes
Protection from high-voltage pulses:
Yes
Additional Information APC Smart-UPS XL 3000VA 230V Tower/Rackmount (5U)
Noise level:
53 dV
Color:
black
Dimensions (WxHxD):
196x432x503 mm
Height (in units):
5 U
Weight:
55 kg
Features:
programmable port for emergency stop unit
