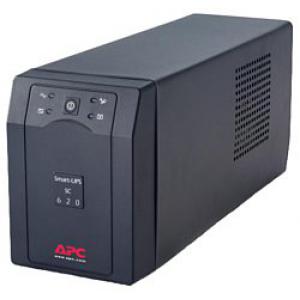

APC Smart-UPS SC 620VA 230V (SC620I) specs.

  Uninterruptible Power Supplies Specs >> APC >> APC Smart-UPS SC 620VA 230V (SC620I)
Specifications | Reviews


Technical Characteristics APC Smart-UPS SC 620VA 230V (SC620I)
Type:
interactive
Rackable:
no
Output power APC Smart-UPS SC 620VA 230V (SC620I)
Full:
620 VA
Active:
390 W
Working hours APC Smart-UPS SC 620VA 230V (SC620I)
Full load:
5.5 min
Half load:
15.7 min
Output Waveform:
sine wave approximation
Max. absorbed by the pulse energy:
320 J
Input / Output APC Smart-UPS SC 620VA 230V (SC620I)
Voltage APC Smart-UPS SC 620VA 230V (SC620I)
Input:
1-phase
Output:
1-phase
The number of output power connectors APC Smart-UPS SC 620VA 230V (SC620I)
Total:
4
UPS:
3
Type:
IEC 320 C13 (computer)
Input voltage APC Smart-UPS SC 620VA 230V (SC620I)
Minimum:
151 V
Maximum:
302 V
Input frequency APC Smart-UPS SC 620VA 230V (SC620I)
Minimum:
47 Hz
Maximum:
63 Hz
Output frequency APC Smart-UPS SC 620VA 230V (SC620I)
Minimum:
47 Hz
Maximum:
63 Hz
The stability of the output voltage (battery mode):
5 %
Functions APC Smart-UPS SC 620VA 230V (SC620I)
Information Display:
LEDs
Audible alarm:
yes
Cold start:
yes
By-pass APC Smart-UPS SC 620VA 230V (SC620I)
Manual:
no
Automatic:
no
Interfaces APC Smart-UPS SC 620VA 230V (SC620I)
USB:?Universal Serial Bus
no
RS-232:
yes
Ethernet 10/100:
no
Slot for optional interfaces:
no
Dry contacts:
no
SNMP Support:
no
Protection APC Smart-UPS SC 620VA 230V (SC620I)
Protection from high-voltage pulses:
yes
Noise Filtering:
yes
Fuse type:
automatic
Phone line protection:
no
Protecting the local network:
yes
Protect the antenna cable:
no
Supply APC Smart-UPS SC 620VA 230V (SC620I)
Charging time:
5.5 h
Battery replacement:
yes
Hot-swappable batteries:
yes
Connecting additional battery:
no
Additional information APC Smart-UPS SC 620VA 230V (SC620I)
Height:
168 mm
Width:
119 mm
Depth:
368 mm
Weight:
12.27 kg
Colour:
gray
