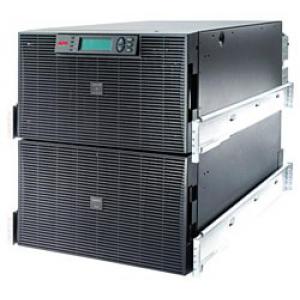

APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI) specs.

  Uninterruptible Power Supplies Specs >> APC >> APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Specifications | Reviews


Technical Characteristics APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Type:
double Conversion
Rackable:
yes
Output power APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Full:
20000 VA
Active:
16000 W
Working hours APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Full load:
4.9 min
Half load:
15.3 min
Output Waveform:
sinusoid
Efficiency:
94 %
Nonlinear distortion factor:
5 %
Input / Output APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Voltage APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Input:
1-phase
Output:
1-phase
The number of output power connectors APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Total:
8
Type:
IEC 320 C13 (computer)
Input voltage APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Minimum:
160 V
Maximum:
280 V
Input frequency APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Minimum:
40 Hz
Maximum:
70 Hz
The stability of the output voltage (battery mode):
5 %
Functions APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Information Display:
LCD Screen
Audible alarm:
yes
By-pass APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Manual:
yes
Automatic:
yes
Interfaces APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
USB:?Universal Serial Bus
no
RS-232:
yes
Ethernet 10/100:
yes
Slot for optional interfaces:
yes
Dry contacts:
no
SNMP Support:
yes
Protection APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Overload protection:
yes
Protection from high-voltage pulses:
yes
Noise Filtering:
yes
Short-circuit protection:
yes
Fuse type:
automatic
Phone line protection:
no
Protecting the local network:
no
Protect the antenna cable:
no
Supply APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Charging time:
2.5 h
Battery replacement:
yes
Connecting additional battery:
yes
Additional information APC Smart-UPS RT 20kVA RM 230V (SURT20KRMXLI)
Noise level:
50 dB
Height (in units):
12 U
Height:
533 mm
Width:
432 mm
Depth:
773 mm
Weight:
247.73 kg
Colour:
black
