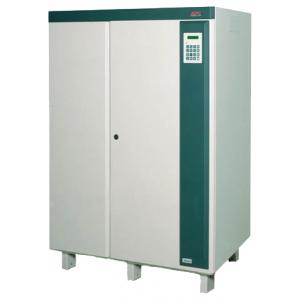

Technical Characteristics APC Silcon 40KW 400V UPS W/2 BPI
Type:
double conversion
Output power:
VA 40000/40000 Tues
Time at full load:
3.8 min
Time at half load:
14.3 min
Output Waveform:
sinusoid
The number of output power connectors:
5
Type of output power connectors:
IEC 320 C13 (computer)
Efficiency:
97%
Input/Output APC Silcon 40KW 400V UPS W/2 BPI
At the inlet:
3-phase power
Input voltage:
323 - 477 V
Input Frequency:
46 - 65 Hz
Output voltage (battery mode):
± 3%
Management APC Silcon 40KW 400V UPS W/2 BPI
Interfaces:
RS-232
Slot for optional interfaces:
Yes
Dry contacts:
Yes
Functionality APC Silcon 40KW 400V UPS W/2 BPI
Information Display:
LCD Screen
Audible alarm:
Yes
Automatic By-pass:
Yes
Battery APC Silcon 40KW 400V UPS W/2 BPI
Connection of additional battery:
Yes
Protection APC Silcon 40KW 400V UPS W/2 BPI
Protection from high-voltage pulses:
Yes
Noise filtering:
Yes
Additional Information APC Silcon 40KW 400V UPS W/2 BPI
Noise level:
55 dV
Dimensions (WxHxD):
1000x1400x800 mm
Weight:
676.36 kg
Features:
1 or 3-phase voltage output, support for SNMP - optional
