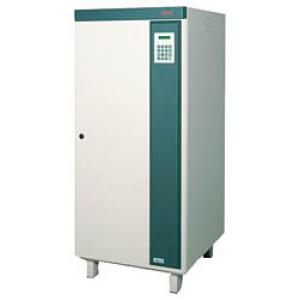

APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1) specs.
Uninterruptible Power Supplies Specs >> APC >> APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)| Specifications | | | Reviews |
Technical Characteristics APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Type:
double Conversion
Rackable:
no
Output power APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Full:
10000 VA
Active:
10000 W
Working hours APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Full load:
14.6 min
Half load:
37.7 min
Output Waveform:
sinusoid
Efficiency:
95 %
Input / Output APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Voltage APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Input:
3-phase
The number of output power connectors APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Total:
5
Type:
IEC 320 C13 (computer)
Input voltage APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Minimum:
323 V
Maximum:
477 V
Input frequency APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Minimum:
46 Hz
Maximum:
65 Hz
The stability of the output voltage (battery mode):
3 %
Functions APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Information Display:
LCD Screen
Audible alarm:
yes
By-pass APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Automatic:
yes
Interfaces APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
USB:
Universal Serial Bus
Universal Serial Busno
RS-232:
yes
Ethernet 10/100:
no
Slot for optional interfaces:
yes
Dry contacts:
yes
SNMP Support:
no
Protection APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Protection from high-voltage pulses:
yes
Noise Filtering:
yes
Phone line protection:
no
Protecting the local network:
no
Protect the antenna cable:
no
Supply APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Charging time:
2 h
Connecting additional battery:
yes
Additional information APC Silcon 10kW 400V UPS W/1 BPI (SL10KHB1)
Noise level:
52 dB
Height:
1400 mm
Width:
600 mm
Depth:
800 mm
Weight:
359.55 kg
