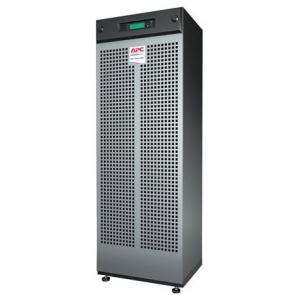

APC Galaxy 3500 20kVA 400V 3:1 with 2 Battery Modules, Start-up 5X8 specs.
Uninterruptible Power Supplies Specs >> APC >> APC Galaxy 3500 20kVA 400V 3:1 with 2 Battery Modules, Start-up 5X8| Specifications | | | Reviews |
Technical Characteristics APC Galaxy 3500 20kVA 400V 3:1 with 2 Battery Modules, Start-up 5X8
Type:
double conversion
Output power:
20000 VA/16000 Tues
Output Waveform:
sinusoid
The number of output power connectors:
3
Type of output power connectors:
IEC 320 C13 (computer)
Efficiency:
95%
Nonlinear distortion factor:
6%
Input/Output APC Galaxy 3500 20kVA 400V 3:1 with 2 Battery Modules, Start-up 5X8
At the inlet:
3-phase power
At the exit:
1-phase power supply
Input voltage:
304 - 477 V
Input Frequency:
40 - 70 Hz
Output voltage (battery mode):
± 5%
Output frequency:
47 - 53 Hz
Management APC Galaxy 3500 20kVA 400V 3:1 with 2 Battery Modules, Start-up 5X8
Interfaces:
RS-232
Support for SNMP:
Yes
Functionality APC Galaxy 3500 20kVA 400V 3:1 with 2 Battery Modules, Start-up 5X8
Information Display:
LCD Screen
Audible alarm:
Yes
Cold start:
Yes
Manual By-pass:
Yes
Automatic By-pass:
Yes
Battery APC Galaxy 3500 20kVA 400V 3:1 with 2 Battery Modules, Start-up 5X8
Charging time:
5:00
The possibility of replacing batteries:
Yes
Hot-swappable batteries:
Yes
Connection of additional battery:
Yes
Protection APC Galaxy 3500 20kVA 400V 3:1 with 2 Battery Modules, Start-up 5X8
Overload protection:
Yes
Protection from high-voltage pulses:
Yes
Noise filtering:
Yes
Short-circuit protection:
Yes
Additional Information APC Galaxy 3500 20kVA 400V 3:1 with 2 Battery Modules, Start-up 5X8
Noise level:
52 dV
Color:
gray
Dimensions (WxHxD):
523x1491x838 mm
Weight:
290 kg
Features:
2 battery module
