APC Back-UPS RS 500VA (BR500I) specs.

  Uninterruptible Power Supplies Specs >> APC >> APC Back-UPS RS 500VA (BR500I)
Specifications | Reviews


Technical Characteristics APC Back-UPS RS 500VA (BR500I)
Type:
interactive
Rackable:
no
Output power APC Back-UPS RS 500VA (BR500I)
Full:
500 VA
Active:
300 W
Working hours APC Back-UPS RS 500VA (BR500I)
Full load:
5.8 min
Half load:
12.4 min
Output Waveform:
sine wave approximation
Max. absorbed by the pulse energy:
300 J
Input / Output APC Back-UPS RS 500VA (BR500I)
Voltage APC Back-UPS RS 500VA (BR500I)
Input:
1-phase
Output:
1-phase
The number of output power connectors APC Back-UPS RS 500VA (BR500I)
Total:
4
UPS:
3
Type:
IEC 320 C13 (computer)
Input voltage APC Back-UPS RS 500VA (BR500I)
Minimum:
168 V
Maximum:
280 V
Input frequency APC Back-UPS RS 500VA (BR500I)
Minimum:
48 Hz
Maximum:
62 Hz
Functions APC Back-UPS RS 500VA (BR500I)
Information Display:
LEDs
Audible alarm:
yes
Cold start:
no
By-pass APC Back-UPS RS 500VA (BR500I)
Manual:
no
Automatic:
no
Interfaces APC Back-UPS RS 500VA (BR500I)
USB:?Universal Serial Bus
no
RS-232:
no
Ethernet 10/100:
yes
Slot for optional interfaces:
no
Dry contacts:
no
SNMP Support:
no
Protection APC Back-UPS RS 500VA (BR500I)
Overload protection:
no
Protection from high-voltage pulses:
yes
Noise Filtering:
no
Short-circuit protection:
no
Phone line protection:
yes
Protecting the local network:
no
Protect the antenna cable:
no
Supply APC Back-UPS RS 500VA (BR500I)
Charging time:
8 h
Battery replacement:
yes
Connecting additional battery:
no
Additional information APC Back-UPS RS 500VA (BR500I)
Height:
165 mm
Width:
91 mm
Depth:
284 mm
Weight:
5.89 kg


Reviews, Questions about APC Back-UPS RS 500VA (BR500I)




Write Review / Ask a question about APC Back-UPS RS 500VA (BR500I)


      9+10= *

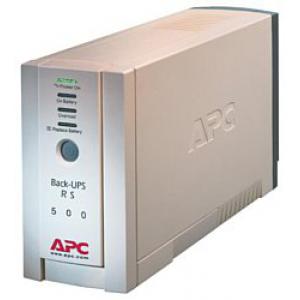

APC Back-UPS RS 500VA (BR500I)
