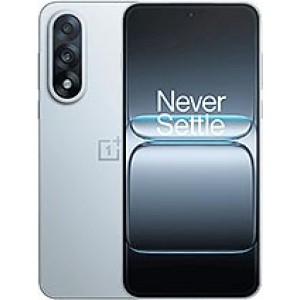

OnePlus Ace 5 Ultra




Basic Spec OnePlus Ace 5 Ultra
Smart Phone OS:?An operating system (OS) is software that interacts between a user and a smartphone.
Android 15, ColorOS 15
Chipset:?Is a set of chips in the smartphone that control the CPU.
Mediatek Dimensity 9400+ (3 nm)
CPU:?Central processing unit
Octa-core (1x3.73 GHz Cortex-X925 & 3x3.3 GHz Cortex-X4 & 4x2.4 GHz Cortex-A720)
GPU:?Graphics Processing Unit
Immortalis-G925 MC12
Display OnePlus Ace 5 Ultra
Type:
AMOLED, 1B colors, 144Hz, 3840Hz PWM, HDR10+, Dolby Vision, HDR Vivid, 800 nits (typ), 1400 nits (peak)
Screen Size:?This diagonal display size is usually measured in inches.
6.83 inches, 113.3 cm2 (~90.1% screen-to-body ratio)
Screen Resolution:?Screen resolution refers to the size of the image received on the screen in pixels
1272 x 2800 pixels (~450 ppi density)
Protection:
Crystal Shield Glass
Storage OnePlus Ace 5 Ultra
Card slot:
No
Internal:
256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM?Random Access Memory
Main Camera OnePlus Ace 5 Ultra
Dual:
50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS
8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm
Features:
LED flash, HDR, panorama
Video:
4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS
Selfie camera OnePlus Ace 5 Ultra
Single camera:
16 MP, f/2.4, 23mm (wide), 1/3", 1.0µm
Features:
HDR, panorama
Video:
1080p@30fps, gyro-EIS
Sound OnePlus Ace 5 Ultra
Loudspeaker:
Yes, with stereo speakers
3.5mm jack:
No
Network connectivity OnePlus Ace 5 Ultra
Technology:
GSM / HSPA?High Speed Packet Access / LTE / 5G
2G:?Second generation cellular network
GSM 850 / 900 / 1800 / 1900
3G:?Third generation cellular network
HSDPA?High-Speed Downlink Packet Access 850 / 900 / 1700(AWS) / 2100
4G:?Fourth generation cellular network
1, 3, 4, 5, 8, 18, 19, 26, 28, 34, 38, 39, 40, 41, 42, 48, 66
5G:
1, 3, 5, 8, 26, 28, 38, 40, 41, 48, 66, 77, 78 SA/NSA
Speed:
HSPA, LTE, 5G
WLAN:?Wireless Local Area Network
Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band
Bluetooth:?Bluetooth is used to exchange data between nearby mobile devices.
5.4, A2DP, LE, aptX HD, LHDC 5, BLE Audio
Positioning:
GPS (L1+L5), GLONASS?GLObal NAvigation Satellite System (G1), BDS (B1I+B1c+B2a+B2b), GALILEO?European Global Navigation Satellite System (E1+E5a+E5b), QZSS?Quasi-Zenith Satellite System (L1+L5), NavIC (L5)
NFC:?Near field communication
Yes
Infrared port:
Yes
Radio:
No
USB:?Universal Serial Bus
USB Type-C 2.0
Regulatory OnePlus Ace 5 Ultra
Colors:
Blue, Black, Titanium
Models:
PLC110
Price:
About 310 EUR
Phone features OnePlus Ace 5 Ultra
Sensors:
Fingerprint, accelerometer, gyro, proximity, compass
Battery OnePlus Ace 5 Ultra
Type:
Si/C Li-Ion 6700 mAh
Charging:
100W wired, PD, 100% in 39 min
7.5W reverse wired
Bypass charging
Size OnePlus Ace 5 Ultra
Dimensions:
163.4 x 77 x 8.1 mm (6.43 x 3.03 x 0.32 in)
Weight:
206 g (7.27 oz)
SIM:
Nano-SIM + Nano-SIM
